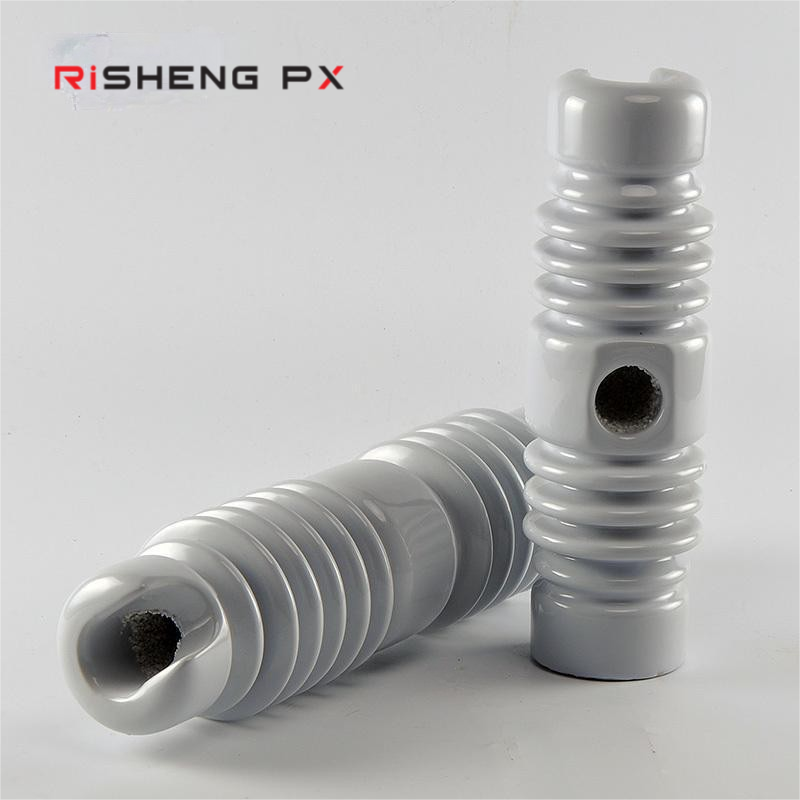

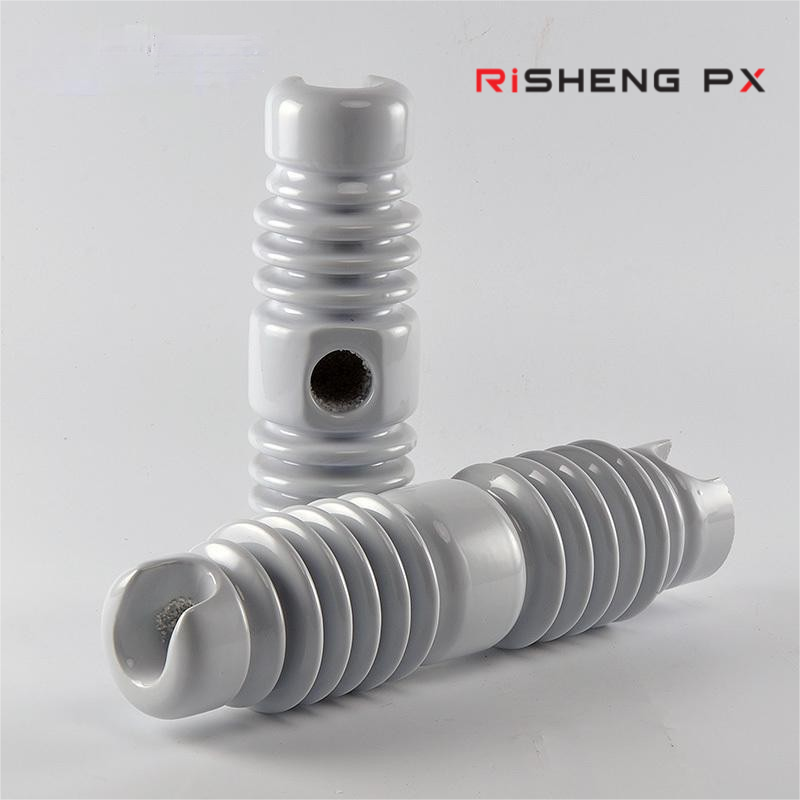

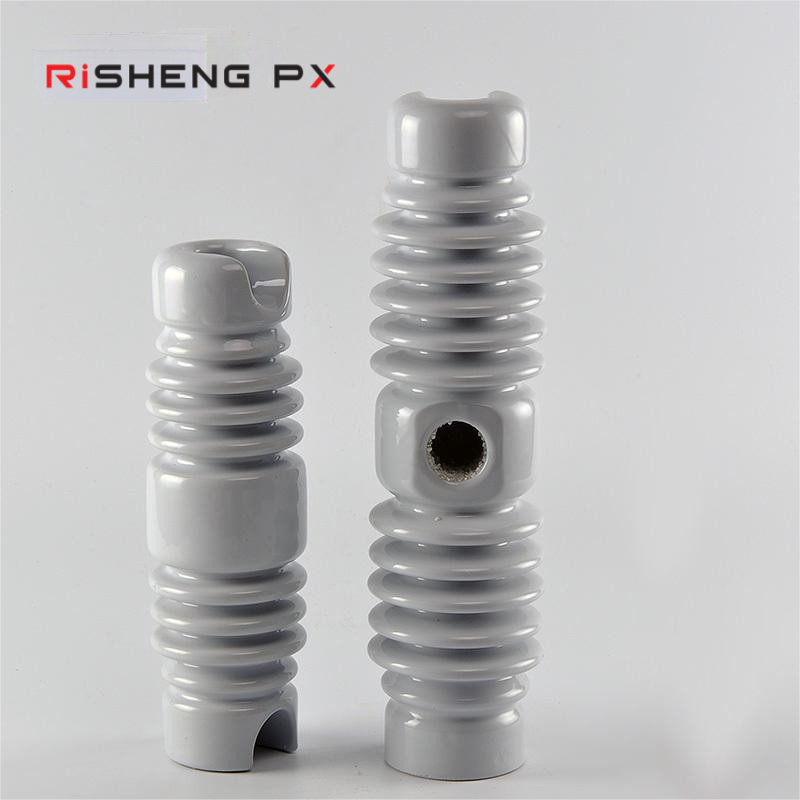

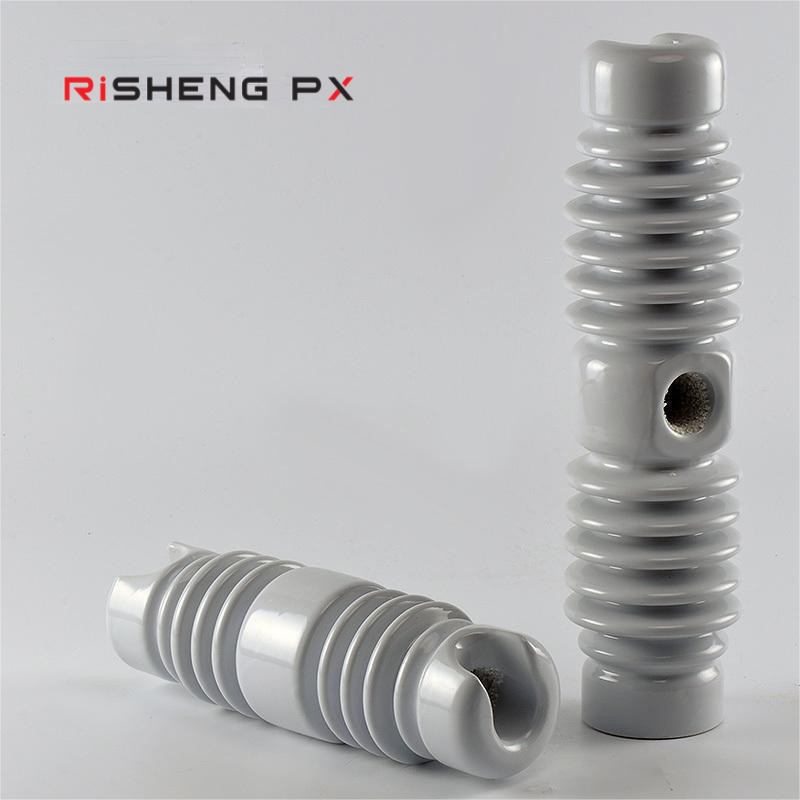

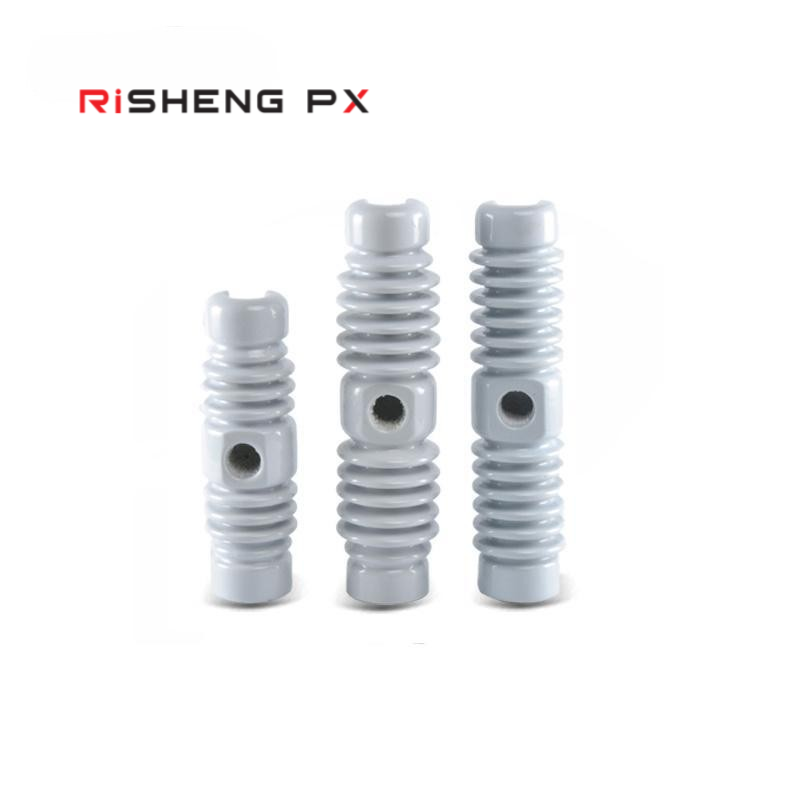

15kV-33kV Fuse Cut out Bushing Insulator

Send Inquiry

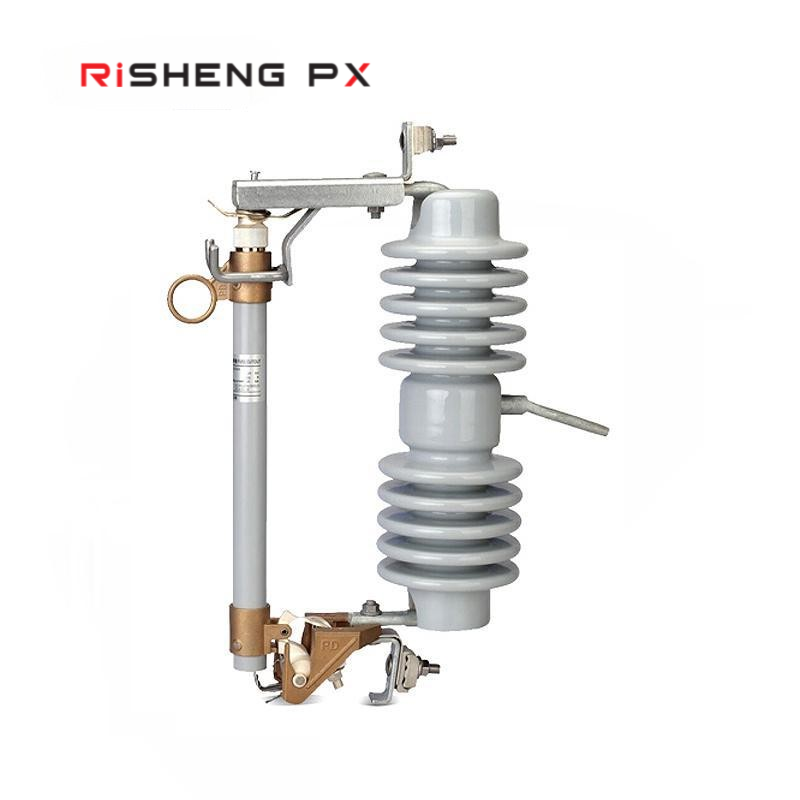

15kV-33kV Fuse Cut out Bushing Insulator

Categories: Fusible Transformer Bushing, Transformer Bushing

Description

15kV-33kV Fuse Cut out Bushing Insulator Description:

Porcelain Fuse Cutout leads high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current

Quick details:
brand name: as per customers’ requirements
model number: can be ordered
usage: high voltage
breaking capacity: high
Safety standards: IEC
installation: open frame
export markets: Global
packing: export carton or as customized

15kV-33kV Fuse Cut out Bushing Insulator Size:

Model No.	Rated Voltage/kv	Rated Current/A	Breaking Current/ KA	Impulse Voltage/ BIL	Power-Frequency Withstand Voltage/ KV
RW11-10/100	10	100	6.3	110	42
RW11-10/200	10	200	12.5	110	42

Fuse Porcelain bushing(IEC ANSIAS)
Figure no		72101	72102	72103	72201	72202	72203	72204	72205	72206	72207	72208	72209	72210	722301	722302
Cat.No.		1	1	1	2	2	2	2	3	4	5	4	4	4	6	6
Main Dimension
Diameter(D)	mm	287	287	287	376	375	376	376	376	375	467	376	365	375	467	467
Diameter(d)	mm	87	90	105	90	96	87	102	131	129	96	127	150	155	130	121
Height	mm	32	32	32	32	35	32	35	35	32	32	32	35	35	35	32
Creepage distance	mm	220	240	255	300	340	280	360	470	460	432	450	500	550	660	660
Electrical Values
Voltage class	kv	15	15	15	25	25	25	25	24/27	24/27	25/27	24/27	24/27	25/27	33/36	33/36
Cantilever strength	kv	18	18	20	10/12.5	10	10	10	10	10	6.8/10	10	10	10	6.8/10	6.8/10
Packing and Shipping Data
Net weight, approximate	kg	2.6	2.8	3.2	3.5	3.7	3.4	3.9	5.8	6.0	5.2	5.8	6.5	6.9	7.5	7.5
Shed number		8	8	8	12	12	12	12	12	10	17	10	10	10	16	16

Our products have been serviced in more than 20 countries’ power systems, we have focused on Electric power for more than 12 years.
Hope we can establish a good business relationship in the future. we will supply professional technology and good service to you the first time.
