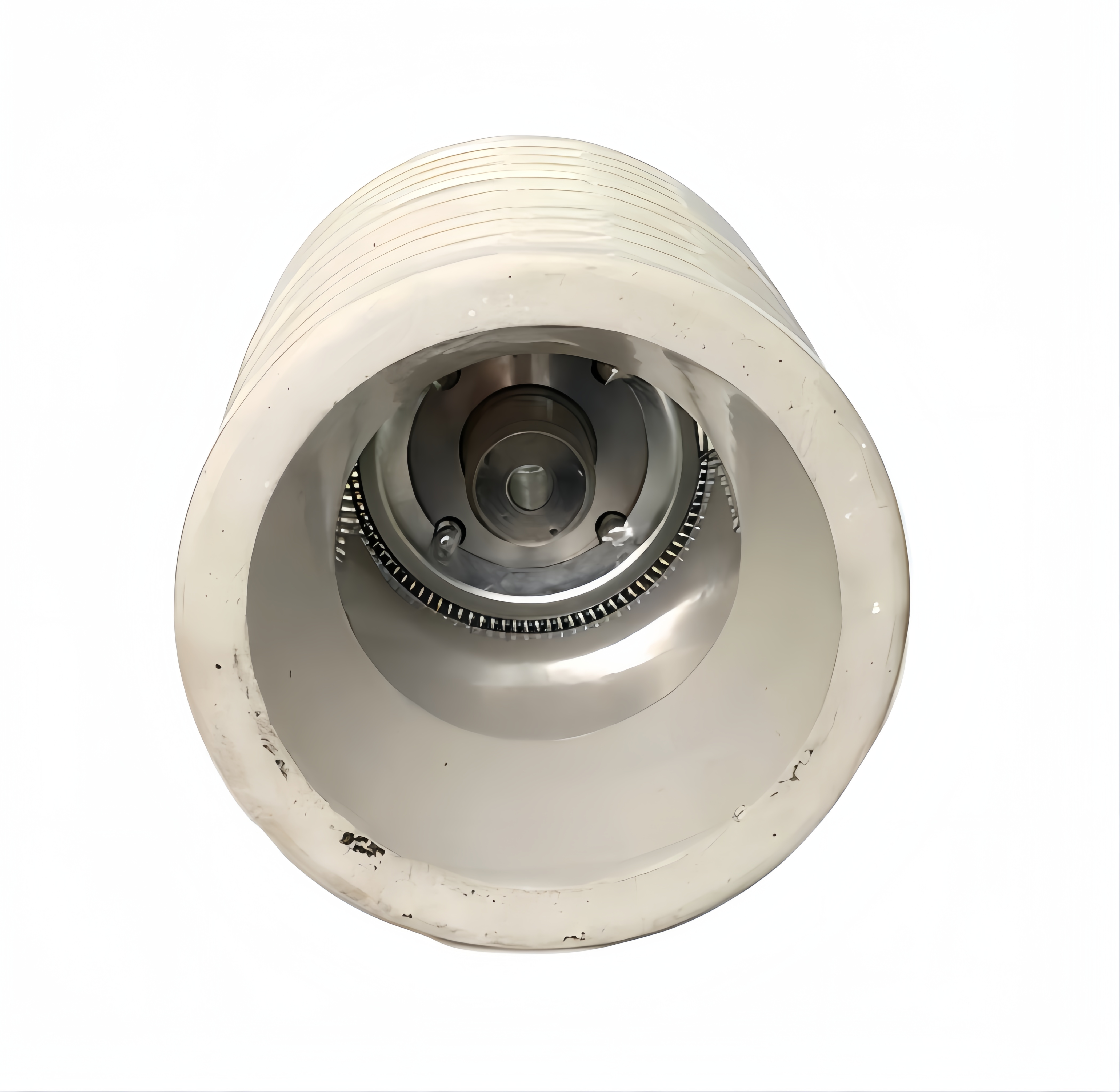

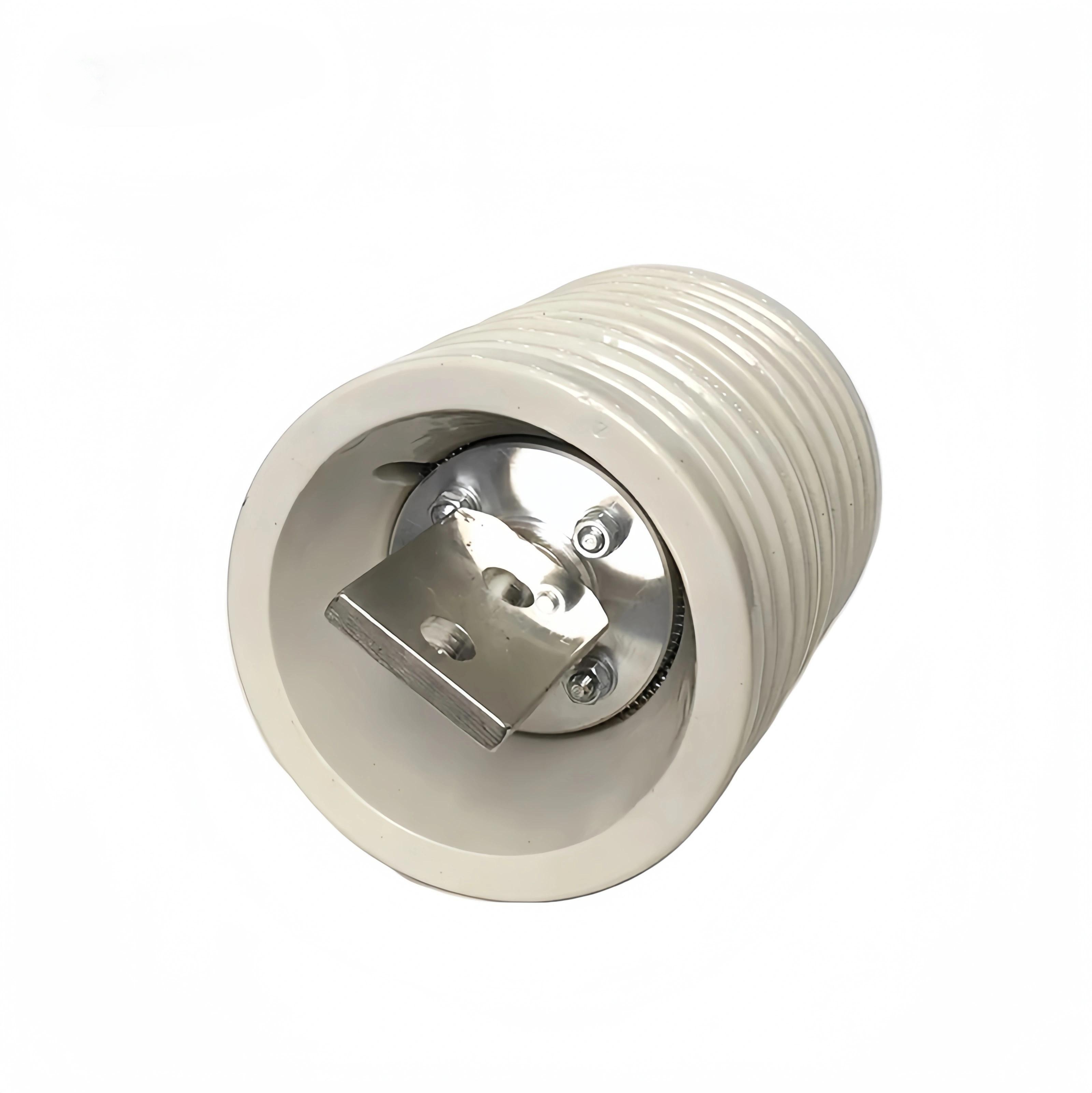

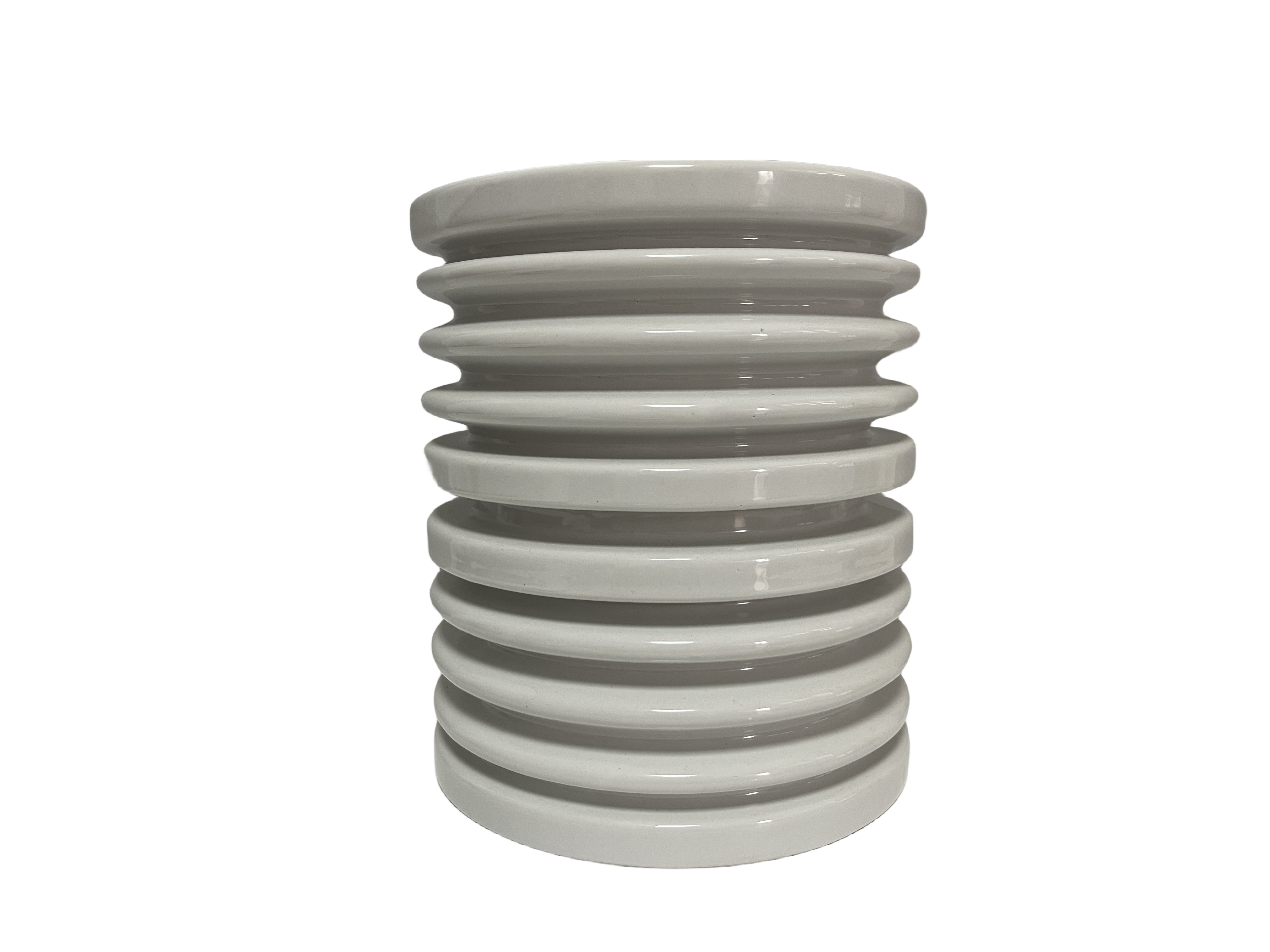

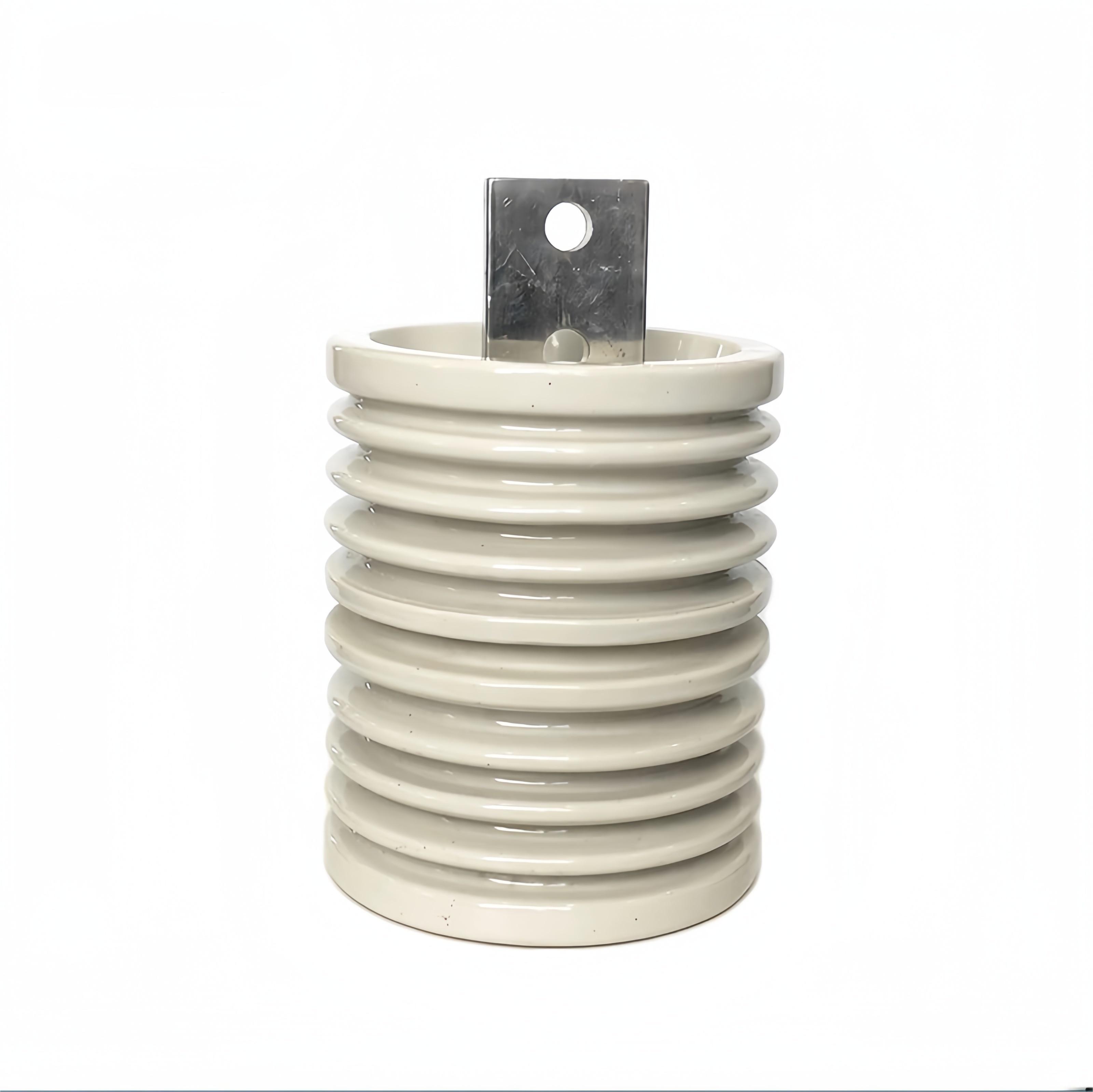

    IP-10-100 Insulator Bushing

    Bushing insulators IP 10-100 10 kV (for indoor installation) – description
    IPU insulators are designed for insulating live parts in electrical devices and complete switch gears with a voltage of 10 kV alternating current with a frequency of up to 60 Hz.

    The product is intended for isolation and fastening wires, including isolation on overhead transmission lines, distribution devices of electric power stations, and substations with AC voltage up to 10 kV.

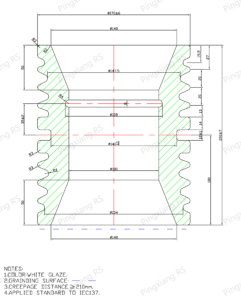

    H=200MM;D=170MM

    Creepage distance Min 210MM

    Rated voltage: 10KV

    Weight: 5.3KG

    Model NO: IP-10-100 Insulator Bushing
    Type: Russia standard
    Usage: High Voltage Power Transmission, Insulation, Electrical Installation
    Connection Method: Trough Type
    Size of Bearing Capacity: 12.5kn
    Certification: ISO9001
    Color: White
    Brand: Risheng PX
    Transport Package: 1000*1000*1000mm
    Trademark: Risheng PX
    Origin: China
    HS Code: 854620909
    Production Capacity: 100000/year
    Insulator IP-10-100-I 02
    Ceramic bushing insulator IP-10-100-I 02 is designed for insulating and conducting current-carrying parts of closed switchgears, for connection with open switchgears or with power lines for alternating voltage up to 10 kV, both for operation in the atmosphere and for closed conductors .Symbol structure
    I – insulator
    P – pass-through
    10 – rated voltage, kV
    100 – internal diameter of the insulator, mm
    I – modification
    0 – climatic version
    2 – accommodation category
